Fracturing Diversion Manifold Skid
Fracturing Diversion Manifold Skid
We have developed 3" to 7-1/16" series high pressure fracturing manifolds for conventional and non-conventional fracturing operations for shale gas and shale oil, providing integrated solution for large-scalefracturing manifolds.
Remote and local control of HP valves.
Automatic control of interlock between plug valves and fracturing truck.
Reduce risk and labor intensity.
High-pressure manifolds for conventional and unconventional oil and gas fracturing operation, widely used in global oil and gas fields.
3 "7-1/16 series fracturing manifolds for high-pressure and large displacement fracturing operations for shale gas and oil development
Product Parameters

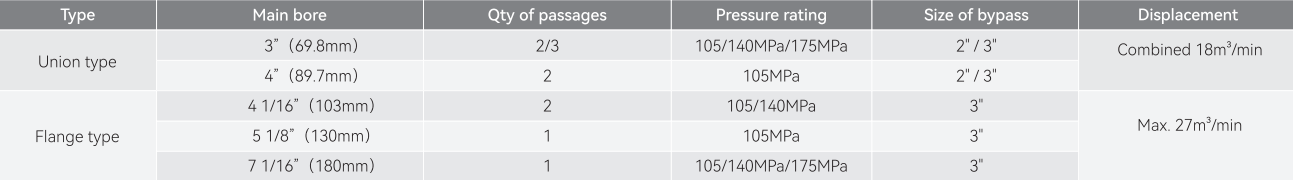

Refer to the project-specific parameter table below. Final values are confirmed against the selected configuration and operating duty.
Selection Notes for Fracturing Diversion Manifold
Fracturing Diversion Manifold should be reviewed against the actual operating duty and supporting equipment, not only the model name. Confirm pressure, displacement, fluid compatibility, mixing or pumping duty, power source and transport format before quotation.
Application Fit
When reviewing Fracturing Diversion Manifold Skid, the relevant application discussions include fracturing, well testing, drilling-fluid routing and high-pressure wellhead service. The final application fit depends on the project specification, operating envelope and local requirements. Request the current technical file for Fracturing Diversion Manifold Skid and confirm pressure, displacement, pump arrangement, sand handling, blending and power supply. The product image is a visual reference; final selection should follow the project configuration and operating envelope.
Inquiry Data for Fracturing Diversion Manifold Skid
- Working pressure, bore size and required fluid-control rating.
- Manifold layout, valve arrangement, outlet count and remote-operation needs.
- Material compatibility, fluid type, temperature and corrosion exposure.
- Wellhead, fracturing, drilling-fluid or testing-system connection details.
- Required instrumentation, test pressure, inspection agency and documentation.
- General arrangement, pressure class, test records and spare-valve requirements.
Engineering Review and Delivery Scope
Before the stimulation package is confirmed, the buyer and supplier should align the configuration, interfaces, inspection scope, documentation package, spare-parts requirements, commissioning responsibilities and after-sales communication route for Fracturing Diversion Manifold Skid. A quotation should be evaluated against those details, not only against the headline product name.
For Fracturing Diversion Manifold Skid, send the operating conditions and available tender documents through the inquiry form. When contacting SJ about Fracturing Diversion Manifold Skid, include target pressure, rate, fluid system, power source and sand-handling scope. This allows the engineering team to identify the available drawings, parameter sheets and inspection documents for the configuration under review.
Send us the well conditions, target duty, quantity and destination. Our engineer will review the configuration with you.
